Chemical Industry 200Tph 2000mm Conveyor Belt Weigher
Precision Conveyor Belt Weighing System with LCD Display
Advanced floating belt electronic belt weigher designed for high-precision measurement in industrial conveyor systems.
Product Overview
The AGMT FH series floating belt electronic belt weigher features a free-floating balance structure with infinite position devices, ensuring accurate and reliable weighing with high measurement accuracy. The weighing bridge connects directly to load cells with minimal force transmission links, providing exceptional performance for high-precision belt conveyor measurement applications.
Application Scope
This precision computer batching scale is widely used across multiple industries including metallurgy, mining, coal, building materials, chemical processing, and energy sectors. It serves as essential equipment for measurement, dosing, and continuous dosing of powder, bulk solids, and small block materials, significantly improving production efficiency while reducing energy consumption and enhancing product quality.
Technical Specifications
| Accuracy Class |
Specifications |
| 0.25 (Dynamic Error 0.25%) |
Belt Conveyor Width: 300-2000mm
Belt Conveyor Speed: 0.5-3.5 M/s
Measurement Capacity: 10-5000t/h
|
| 0.5 (Dynamic Error 0.5%) |
| 1 (Dynamic Error 1%) |
| 2 (Dynamic Error 2%) |
Working Principle

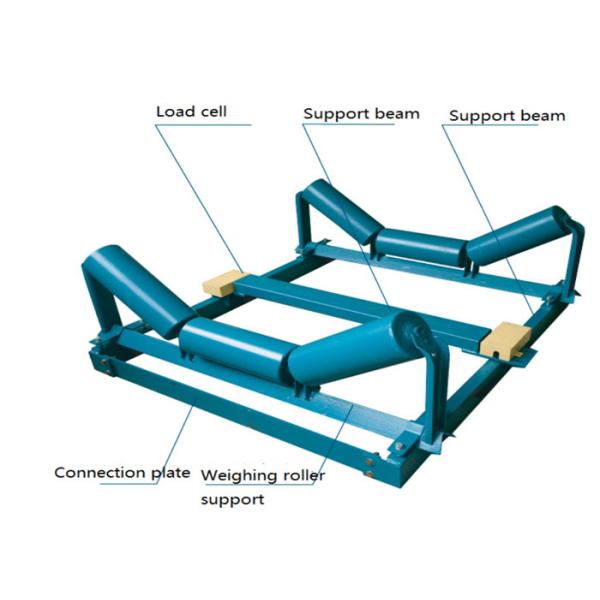

The weighing bridge mounts directly on the conveying frame. When material passes through, the measuring idler detects the weight and transmits this data through a lever to the weighing sensor, generating a voltage signal proportional to the belt load. The speed sensor connects to a large diameter speed measuring cylinder, producing pulses where each pulse represents a unit of belt movement, with pulse frequency proportional to belt speed. The weighing instrument processes signals from both sensors, calculating instantaneous flow values and accumulated weight through integral operations.
Speed Measuring System
The FH series belt scale utilizes the PLR-12R type speed measuring device, consisting of a speed sensor and measuring roller directly fixed to the conveying frame. The roller suspends on the return belt and rotates via friction to measure speed accurately. Speed sensors feature carbon brushless pulse generators emitting pulse series where each pulse represents belt travel units, with IP65 protection rating for reliable operation in industrial environments.
Key Features
- Frame constructed from cold bending C-type steel plate with rational structure and high intensity
- Low noise operation with minimal vibration, dust-proof design, high reliability and extended service life
- Annular belt without junction, with options for parallel belt, baffle plate, or rimmed belt structures
- Unique X-type leaf spring measuring device ensuring superior linearity and repeatability
- Magnetic-sensing speed measuring device and circuitry for accurate, reliable speed measurement
- Integrated belt anti-off-tracking device and automatic tensioning system
Customer Service & Support
- Pre-sale Services: Comprehensive planning including process flow design and equipment selection according to specific requirements
- Warranty: One-year warranty ensuring consistent machine operation with lifelong services and long-term spare parts availability
- Technical Services: Production line design and solutions based on buyer requirements, with technical documentation provided within 7 days of deposit receipt
- After-sales Service: On-site installation and commissioning support with worker training, maintenance assistance, and preferential pricing for services and fittings beyond warranty
Frequently Asked Questions
Can I customize shelving or racking at my own size?
Yes, we offer complete customization services for shelving and racking systems.
If I need a complete packing line, can Saimo help build it?
Yes, we provide complete packing line solutions with professional engineering advice. Our experienced team has successfully completed numerous projects both in China and internationally.
What is the guarantee period?
The guarantee period is twelve months from the date of putting into use, but not exceeding twenty-four months after machines leave our factory. This does not apply to quick wear parts.
Can I check the status of my order?
Yes, we provide regular updates including information and photos at different production stages, keeping you informed throughout the manufacturing process.
